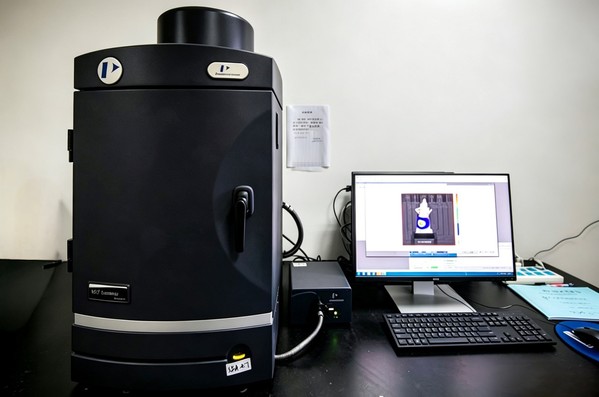

IVIS® Lumina III Small Animal Imaging System

Manufacturer

PerkinElmer

Type number

IVIS® Lumina III

Specifications

1.CCD Type: Back-thinned, back-illuminated, Grade   1 scientific CCD chip

2.CCD Operating Temperature: Electric cooling;   imaging operating temperature down to -90 ℃, with   temperature visualization

3.CCD Size: 13.3 × 13.3 mm; more than 1 million   pixels

4.Quantum Efficiency: >85% (500–700 nm),   >30% (400–900 nm)

5.Minimum Detectable Photon: 100   photons/sec/steradian/cm²

6.Field of View: Minimum 5 × 5 cm; Maximum 12.5 ×   12.5 cm

7.High-quality optical filters with transmittance   up to 95%; filters coated with multi-layer hard coating

8.Lens: f/0.95 – f/16, 50 mm; Stage temperature:   20–40 ℃

9.Computer Workstation: 2.8 GHz, 4 GB RAM, RW   CD/DVD, 250 GB HD, 24” flat screen monitor

Function and applications

IVIS® Lumina III is the third-generation 2D in vivo optical imaging   platform for small animals newly launched by PerkinElmer. Inheriting the   gold-standard high-sensitivity bioluminescence 2D imaging performance shared   by previous generations of the IVIS series, the system further optimizes   fluorescence 2D imaging capabilities. It expands the standard configuration   of optical filters to 26 pieces and incorporates the pure component spectral   analysis technology (CPS), the gold standard for fluorescence multispectral   imaging. This makes the Lumina III a high-performance in vivo imaging platform   featuring gold-standard performance for both bioluminescence and fluorescence   2D imaging.
