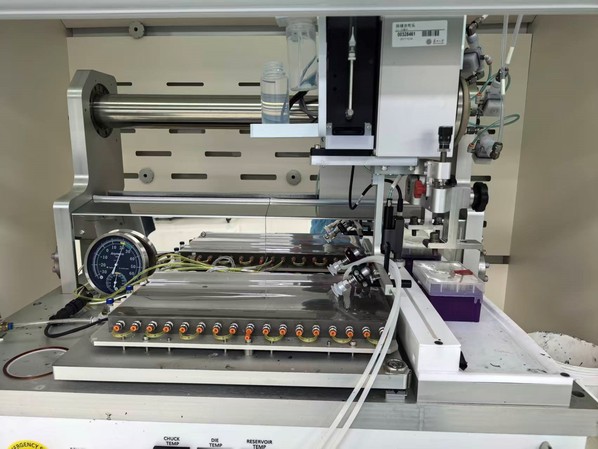

Extrusion Coater

Manufacturer

nTact (FAS Holdings Group, LLC)

Type number

nRad Generation 1

Specifications

Max. substrate size: 200 × 300 mm (rigid or   flexible)
Coating method: Moving extrusion die (slot-die) over stationary substrate
Die lip aperture width: 140–190 mm (depending on configuration)
Gap control: Contact linear encoder with high precision
X-axis drive: Linear motor with air-bearing guide shafts
Z-axis drive: Servo motor + ballscrew, travel 14 mm
Fluid delivery: High-precision syringe pump (ceramic/stainless) with rotary   valve

Function and applications

Direct deposition of continuous wet thin-film   coatings of high‑purity process fluids on flat panel, sheet, or flexible   substrates.
Used for process validation, coating thickness optimization, formulation   screening, and scale‑up development.

Accessories

Multiple chuck assemblies

Matching extrusion dies

Solvent trough, priming trough, drip tray

Contacts: Yanyun Liu

E-mail: yyliu1@suda.edu.cn
